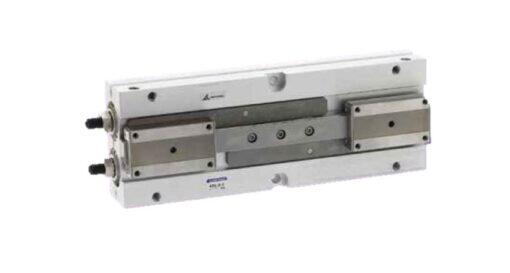

Flat Type Air Hand AFDPG Series

Flat Pneumatic Finger

●The mounted linear guide improves accuracy and rigidity. The flat-type pneumatic fingers have greater high grip than the dual-piston type. There are synchronous shapes, different shapes, and elongated shapes, which can be selected according to the workpiece. In terms of shape, the height between the platform surface and the guide rail is 15cm (φ6) 37cm (φ18) ultra-thin design, a full range of optional stroke adjustment mechanism accessories (opening direction, closing direction)

Bore………6mm;8mm;12mm ;14mm;18mm
journey………12～80mm
actual holding power………6mm→12N｛1.2kgf｝～18mm→105N｛10.7kgf｝
